Flexible Flat Traveling Control Cable for Crane,Crance cable, Flat cable

Name: Flexible Flat Traveling Control Cable for CraneCrance cable Flat cable
Brand: ECHU
Price: 1.11 USD

Wholesale Flexible Flat Traveling Control Cable for Crane,Crance cable, Flat cable from china suppliers

Brand Name : ECHU

Model Number : YFFB YFFBG

Certification : CCC,CE,UL

Place of Origin : China

MOQ : 300M

Price : 1.11

Payment Terms : T/T

Supply Ability : 1000000000000METERS

Delivery Time : 7-10days

Packaging Details : REELS, DRUM,ROLLS

Application : Power

Contact Now

Flexible Flat Traveling Control Cable for Crane,Crance cable, Flat cable

Cold Resistance Flexible Flat Crane Cable

Applications:

Temperature (for cold resitance): -40degree to +105 degree
As connecting and control cable for cranes and conveyors, it is suitable for the places of railway stations, crane and other related situations.

It is suitable as a control and connection cable for cranes and conveyors on building sites, container goods railway stations and cockyards where operating conditions are rough.

Properties:
Sheath: Special polychloreprene (Butadiene-acrylonitrile rubber, ) it remains flexible at below 15 degree, flame resistance and self-extinguishing.

Structure:
Conductor: Superfine copper strands acc. To VDE 0295, class 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Color: Acc. To 227IEC (brown, blue, black. Green/yellow)
5 cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber, resistant to oil, flame retardant and self-extinguishing
Color: Black(RAL9005) or Grey (RAL7001)
Standard: Acc. To VDE0482, part 265-2-1 resp. EN50265-2-1 and IEC60332-1

Technical data:
Rated voltage: </=1.5mm 300/500V, >1.5mm 450/750V
Test voltage: </=1.5mm 2500V, >1.5mm 3000V

Minimum bending radius: 0.3m<L<0.6m;
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1: 1993 test passed standard: GB5023.6, IEC 60227-6, EN50214
Used under the normal conditions. The temperature of conductor is lower than 70 degree
Temperature range: Below 15 degree to +40degree
Cables are recommended for Installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s.

If it more than this, with steel.

Samples are available

Type	Cores	Cross section	Width (mm)	Thickness (mm)	Weight(kg/km)	Shape
YFFB	4	4	21.9±1.5	7.3±0.5	360.4	Parallel
YFFB	5	4	27.3±1.5	7.3±0.5	447.3	Parallel
YFFB	6	4	31.7±2.0	7.3±0.5	523.8	Parallel
YFFB	7	4	36.1±2.0	7.3±0.5	600.3	Parallel
YFFB	8	4	40.5±2.0	7.3±0.5	676.8	Parallel
YFFB	9	4	44.9±2.0	7.3±0.5	753.3	Parallel
YFFB	10	4	49.3±2.0	7.3±0.5	829.8	Parallel
YFFB	11	4	53.7±2.0	7.3±0.5	906.3	Parallel
YFFB	12	4	58.1±2.0	7.3±0.5	982.8	Parallel
YFFB	13	4	62.5±2.5	7.3±0.5	1059.3	Parallel
YFFB	14	4	67.9±2.5	7.3±0.5	1146.2	Parallel
YFFB	15	4	72.3±2.5	7.3±0.5	1222.7	Parallel
YFFB	16	4	76.7±2.5	7.3±0.5	1299.2	Parallel
YFFB	17	4	81.1±2.5	7.3±0.5	1375.7	Parallel
YFFB	18	4	86.5±2.5	7.3±0.5	1462.5	Parallel
YFFB	19	4	90.9±2.5	7.3±0.5	1539	Parallel
YFFB	24	4	60.1±2.5	16.1±1.0	1866.9	Intertwist
YFFB	30	4	78.8±2.5	14.8±1.0	2361.4	Intertwist
YFFB	36	4	86.7±2.5	16.1±1.0	2851.5	Intertwist


YFFB(G)	2	4	17.6±1.0	7.3±0.5	266	Parallel (With Steel wire)
YFFB(G)	3	4	22.0±1.5	7.3±0.5	342.5	Parallel (With Steel wire)
YFFB(G)	4	4	27.4±1.5	7.3±0.5	429.3	Parallel (With Steel wire)
YFFB(G)	5	4	32.8±1.5	7.3±0.5	516.2	Parallel (With Steel wire)
YFFB(G)	6	4	36.2±2.0	7.3±0.5	582.3	Parallel (With Steel wire)
YFFB(G)	7	4	41.6±2.0	7.3±0.5	669.2	Parallel (With Steel wire)
YFFB(G)	8	4	46.0±2.0	7.3±0.5	745.7	Parallel (With Steel wire)
YFFB(G)	9	4	50.4±2.0	7.3±0.5	822.2	Parallel (With Steel wire)
YFFB(G)	10	4	54.8±2.0	7.3±0.5	898.7	Parallel (With Steel wire)
YFFB(G)	11	4	59.2±2.0	7.3±0.5	975.2	Parallel (With Steel wire)
YFFB(G)	12	4	63.6±2.5	7.3±0.5	1051.7	Parallel (With Steel wire)
YFFB(G)	13	4	68.7±2.5	7.3±0.5	1138.2	Parallel (With Steel wire)
YFFB(G)	14	4	74.1±2.5	7.3±0.5	1225.1	Parallel (With Steel wire)
YFFB(G)	15	4	78.5±2.5	7.3±0.5	1301.6	Parallel (With Steel wire)
YFFB(G)	16	4	82.9±2.5	7.3±0.5	1378.1	Parallel (With Steel wire)
YFFB(G)	17	4	87.3±2.5	7.3±0.5	1454.6	Parallel (With Steel wire)
YFFB(G)	18	4	92.7±2.5	7.3±0.5	1541.4	Parallel (With Steel wire)


YFFB(G)	24	4	69.1±2.5	16.1±1.0	2106.8	Intertwist(with steel wire)
YFFB(G)	30	4	87.0±2.5	14.8±1.0	2567.8	Intertwist(with steel wire)

YFFB	2	6	13.5±1.0	8.0±0.5	254.6	Parallel
YFFB	3	6	18.6±1.0	8.0±0.5	358.2	Parallel
YFFB	4	6	26.9±1.5	8.0±0.5	498.1	Parallel
YFFB	5	6	32.0±2.0	8.0±0.5	601.7	Parallel
YFFB	6	6	38.7±2.0	8.0±0.5	723.4	Parallel
YFFB	7	6	42.2±2.0	8.0±0.5	809	Parallel
YFFB	8	6	48.9±2.0	8.0±0.5	930.7	Parallel
YFFB	9	6	54.0±2.0	8.0±0.5	1034.3	Parallel
YFFB	10	6	59.1±2.0	8.0±0.5	1138	Parallel
YFFB	11	6	62.6±2.5	8.0±0.5	1223.5	Parallel
YFFB	12	6	67.7±2.5	8.0±0.5	1327.1	Parallel
YFFB	13	6	72.8±2.5	8.0±0.5	1430.7	Parallel
YFFB	14	6	79.5±2.5	8.0±0.5	1552.5	Parallel
YFFB	15	6	84.6±2.5	8.0±0.5	1656.1	Parallel
YFFB	16	6	89.7±2.5	8.0±0.5	1759.7	Parallel
YFFB	24	6	68.7±2.5	18.2±1.0	2534.4	Intertwist
YFFB	30	6	90.1±2.5	16.7±1.0	3205.7	Intertwist
YFFB(G)	2	6	22.5±1.5	8.0±0.5	411.4	Parallel(with steel wire)
YFFB(G)	3	6	27.6±1.5	8.0±0.5	515	Parallel(with steel wire)
YFFB(G)	4	6	35.9±2.0	8.0±0.5	654.9	Parallel(with steel wire)
YFFB(G)	5	6	41.0±2.5	8.0±0.5	758.5	Parallel(with steel wire)
YFFB(G)	6	6	46.1±2.5	8.0±0.5	862.1	Parallel(with steel wire)
YFFB(G)	7	6	51.2±2.5	8.0±0.5	965.8	Parallel(with steel wire)
YFFB(G)	8	6	57.9±2.5	8.0±0.5	1087.5	Parallel(with steel wire)
YFFB(G)	9	6	63.0±2.5	8.0±0.5	1191.1	Parallel(with steel wire)
YFFB(G)	10	6	68.1±2.5	8.0±0.5	1294.8	Parallel(with steel wire)
YFFB(G)	11	6	71.6±2.5	8.0±0.5	1380.3	Parallel(with steel wire)
YFFB(G)	12	6	76.7±2.5	8.0±0.5	1483.9	Parallel(with steel wire)
YFFB(G)	13	6	81.8±2.5	8.0±0.5	1587.6	Parallel(with steel wire)
YFFB(G)	14	6	88.5±2.5	8.0±0.5	1709.3	Parallel(with steel wire)
YFFB(G)	24	6	78.7±2.5	18.2±1.0	2846.8	Intertwist(with steel wire)
YFFB	2	10	17.1±1.0	9.7±0.5	388	Parallel
YFFB	3	10	24.0±1.5	9.7±0.5	554.4	Parallel
YFFB	4	10	34.5±2.0	9.7±0.5	770.2	Parallel
YFFB	5	10	41.4±2.0	9.7±0.5	936.5	Parallel
YFFB	6	10	50.1±2.0	9.7±0.5	1127.6	Parallel
YFFB	7	10	55.2±2.0	9.7±0.5	1269.3	Parallel
YFFB	8	10	63.9±2.5	9.7±0.5	1460.4	Parallel
YFFB	9	10	70.8±2.5	9.7±0.5	1626.8	Parallel
YFFB	10	10	77.7±2.5	9.7±0.5	1793.1	Parallel
YFFB	11	10	82.8±2.5	9.7±0.5	1934.8	Parallel
YFFB	12	10	89.7±2.5	9.7±0.5	2101.2	Parallel
YFFB(G)	2	10	26.1±1.5	9.7±0.5	566.5	Parallel(with steel wire)
YFFB(G)	3	10	33.0±2.0	9.7±0.5	732.9	Parallel(with steel wire)
YFFB(G)	4	10	43.5±2.0	9.7±0.5	948.6	Parallel(with steel wire)
YFFB(G)	5	10	50.4±2.0	9.7±0.5	1115	Parallel(with steel wire)
YFFB(G)	6	10	57.3±2.0	9.7±0.5	1281.4	Parallel(with steel wire)
YFFB(G)	7	10	64.2±2.5	9.7±0.5	1447.8	Parallel(with steel wire)
YFFB(G)	8	10	72.9±2.5	9.7±0.5	1638.8	Parallel(with steel wire)
YFFB(G)	9	10	79.8±2.5	9.7±0.5	1805.2	Parallel(with steel wire)
YFFB(G)	10	10	86.7±2.5	9.7±0.5	1971.6	Parallel(with steel wire)
YFFB(G)	11	10	91.8±2.5	9.7±0.5	2113.3	Parallel(with steel wire)

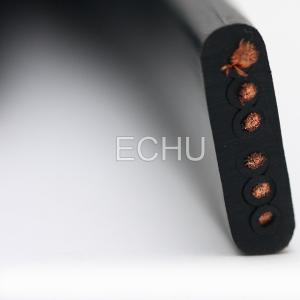

Flexible Flat Traveling Control Cable for Crane,Crance cable, Flat cable Images
